Imported Range
Stainless Steel Body Submersible Sewage Pumps
FHWD Series · FQDS-CW Series
Description
Two fully stainless steel submersible sewage pump series. The FHWD series handles larger solids (up to ø40mm) and is available in single and three phase; the compact FQDS-CW series is ideal for domestic use. All wetted parts in AISI 304.
Applications
Domestic DrainageCivil & Industrial SewageFlooded BasementsUnderground Car ParksCesspoolsSewage Disposal
FHWD Construction
| Pump Body | AISI 304 Stainless Steel |
| Suction Filter | AISI 304 Stainless Steel |
| Impeller | AISI 304 Stainless Steel |
| Motor Shaft | AISI 304 Stainless Steel |
| Mechanical Seal | Alloy / Ceramic-Graphite |

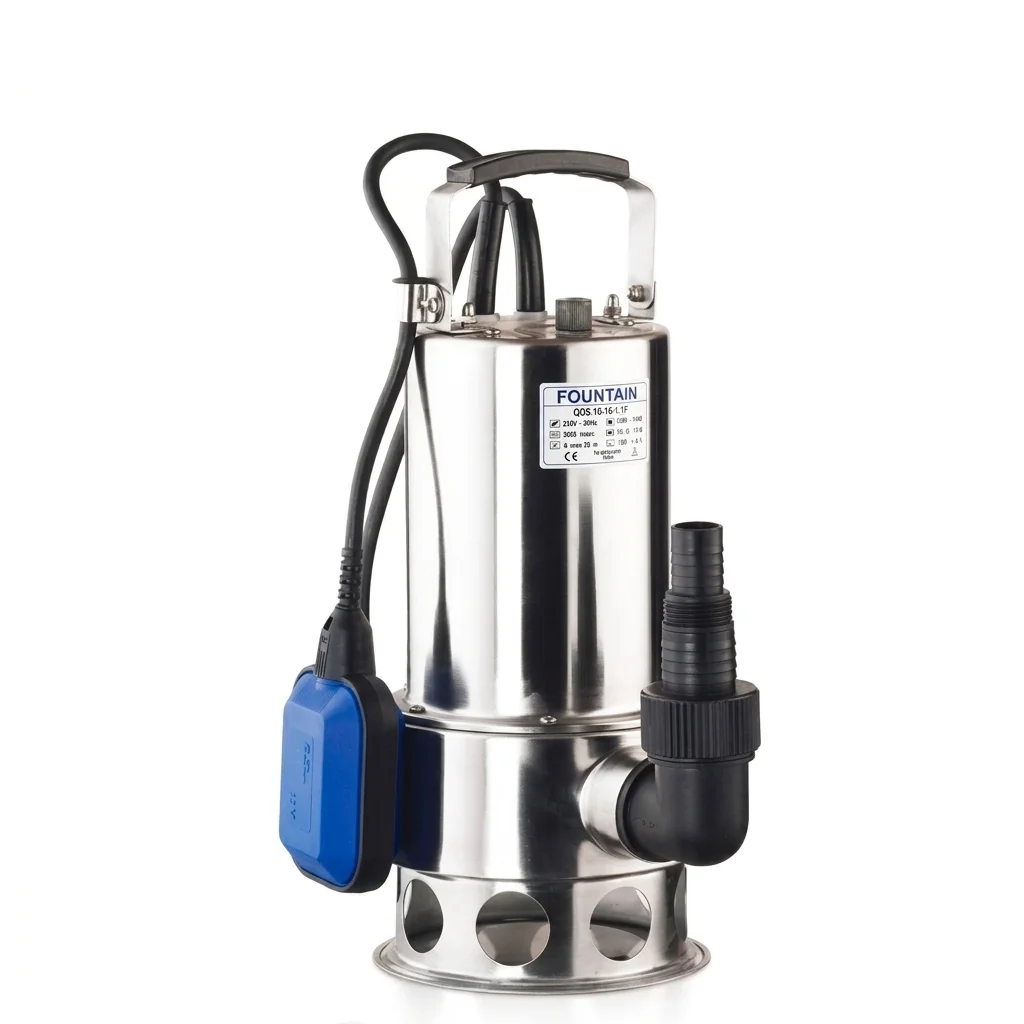

FQDS-CW Construction
| Pump Body | AISI 304 Stainless Steel |
| Suction Filter | AISI 304 Stainless Steel |
| Impeller | AISI 304 Stainless Steel |
| Motor Shaft | AISI 304 Stainless Steel |
| Mechanical Seal | Ceramic / Graphite |
Motor
- Insulation Class F
- Protection IP68
- Continuous service S1
- Thermal protector (single phase)
- Single phase: 220V / 50Hz
- Three phase: 380V / 50Hz (FHWD)
- 6m power cable with plug
Operating Conditions
- Liquid temperature: up to 35°C
- Ambient temperature: up to 40°C
- FHWD: passes solids up to ø40mm
- FQDS-CW: passes solids up to ø8mm
- Liquid type: dirty water, domestic sewage
Model Specifications
All models available at our Karachi shop.
FHWD Series — Cast Iron & SS 304 · 0.55–1.5 kW
| MODEL | kW | HP | MAX HEAD (m) | MAX FLOW (m³/h) | OUTLET | MAX SOLID | WEIGHT | L × W × H |
|---|---|---|---|---|---|---|---|---|
| FHWD-550S | 0.55 | 0.75 | 10 | 24 | 1½" | ø40mm | 11 kg | 260×260×490 mm |
| FHWD-750S | 0.75 | 1 | 12 | 30 | 1½" | ø40mm | 12 kg | 260×260×495 mm |
| FHWD-1100S | 1.1 | 1.5 | 12.8 | 24 | 2" | ø40mm | 13 kg | 270×270×500 mm |
| FHWD-1500S | 1.5 | 2 | 16 | 24 | 2" | ø40mm | 15 kg | 270×270×530 mm |
(T) = three phase 380V / 50Hz · Single phase 220V / 50Hz standard
FQDS-CW Series — Full SS 304 · 0.37–0.75 kW
| MODEL | kW | HP | MAX HEAD (m) | MAX FLOW (m³/h) | OUTLET | MAX SOLID | WEIGHT | L × W × H |
|---|---|---|---|---|---|---|---|---|
| FQDS-370CW | 0.37 | 0.5 | 7 | 9.6 | 1½" | ø8mm | 6 kg | 215×195×410 mm |
| FQDS-550CW | 0.55 | 0.75 | 8 | 9.6 | 1½" | ø8mm | 6.5 kg | 215×195×410 mm |
| FQDS-750CW | 0.75 | 1 | 9 | 9.6 | 1½" | ø8mm | 6.8 kg | 215×195×410 mm |
Single phase 220V / 50Hz only
Performance Curves
H-Q curves at 2850 rpm for both series.
FHWD Series

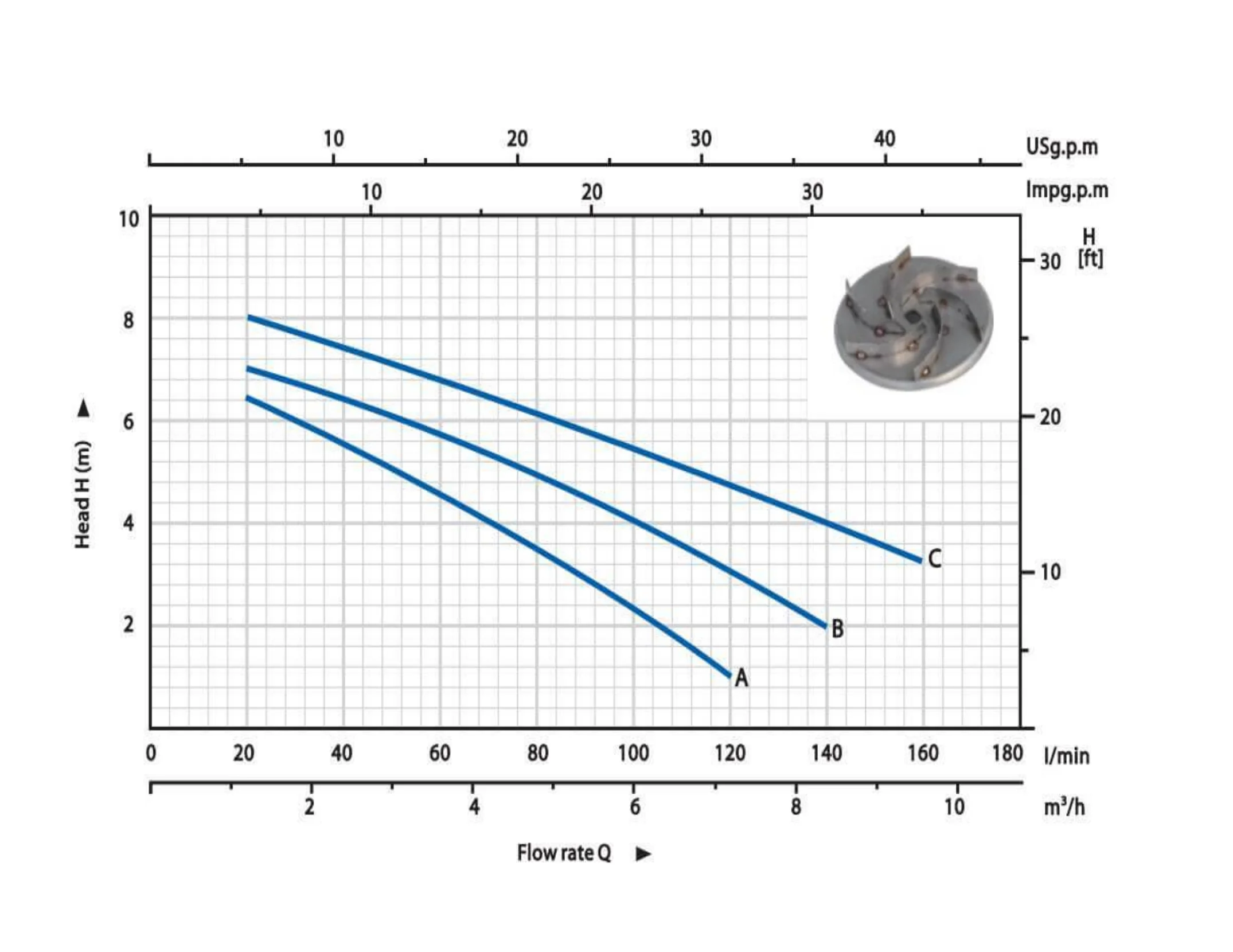

FQDS-CW Series
Dimensions & Packaging
Outlet size, max solid passage, weight and box dimensions for each model.

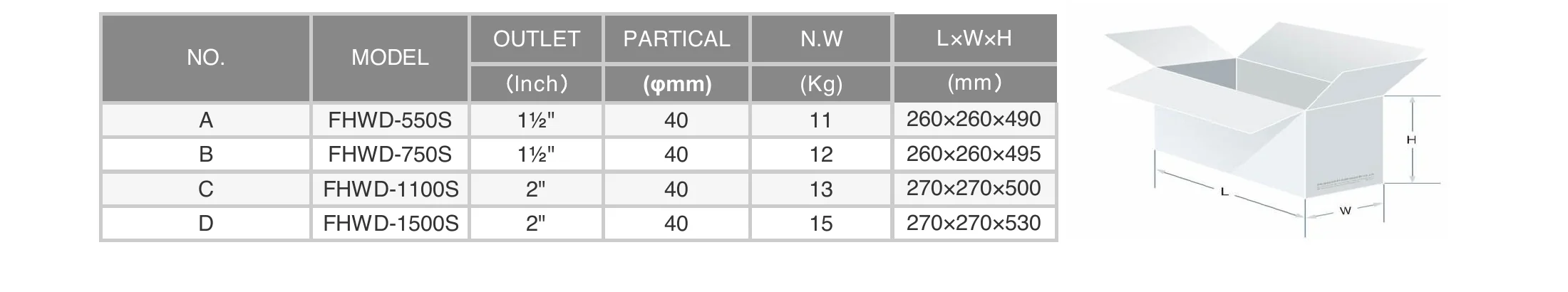

FHWD Series
FQDS-CW Series
Ready to order the FHWD or FQDS-CW Series?
Available at our Karachi shop. WhatsApp us for pricing and availability.
