Fountain CUT-F cutter type submersible sewage pump

Imported Range

Submersible Pump with Grinder

CUT Series

Description

The CUT pumps are specifically designed for pumping untreated waste water from domestic, commercial or municipal sources. The high discharge pressure enables transfer of waste water over longer distances. The pump can cut up fibre mixture in water easily — gloves, rope, cloth — preventing blockage, reducing energy consumption and keeping downtime costs to a minimum.

Applications

Domestic Waste WaterCommercial SewageMunicipal SewageLong-Distance Transfer

Construction Material

Pump Body	Cast Iron
Suction Filter	AISI304 SS
Impeller	Cast Iron
Motor Shaft	AISI304 SS
Mechanical Seal	SIC-SIC / Ceramic-Graphite
Cable	8m power cable with plug

Motor

Two-pole induction motor (n=2850 r.p.m)
Insulation Class F
Protection IP68
Continuous service S1
Thermal protector for single phase
Single phase: 220V / 50Hz, 60Hz if request
Three phase: 380V / 50Hz, 60Hz if request

Operating Conditions

Liquid temperature: up to 35°C
Maximum ambient temperature: 40°C

Model Performance

Head values (H) in metres at each flow rate. All models available at our Karachi shop.

NO.	MODEL	POWER		m³/hQ (m³/h)	0	3	6	9	12	15	18	21
NO.	MODEL	KW	HP	l/minQ (l/min)	0	50	100	150	200	250	300	350
A	CUT F800	0.8	1.1	H	14	13.5	12.5	12	9.5	6.2	2.5
B	CUT F1100	1.1	1.5		19	17.5	16	14	12	8.5	5.3	1
C	CUT F1500	1.5	2		23	20.5	18.5	16	14	11	7	3

H = Head in metres · Performance data at 50Hz

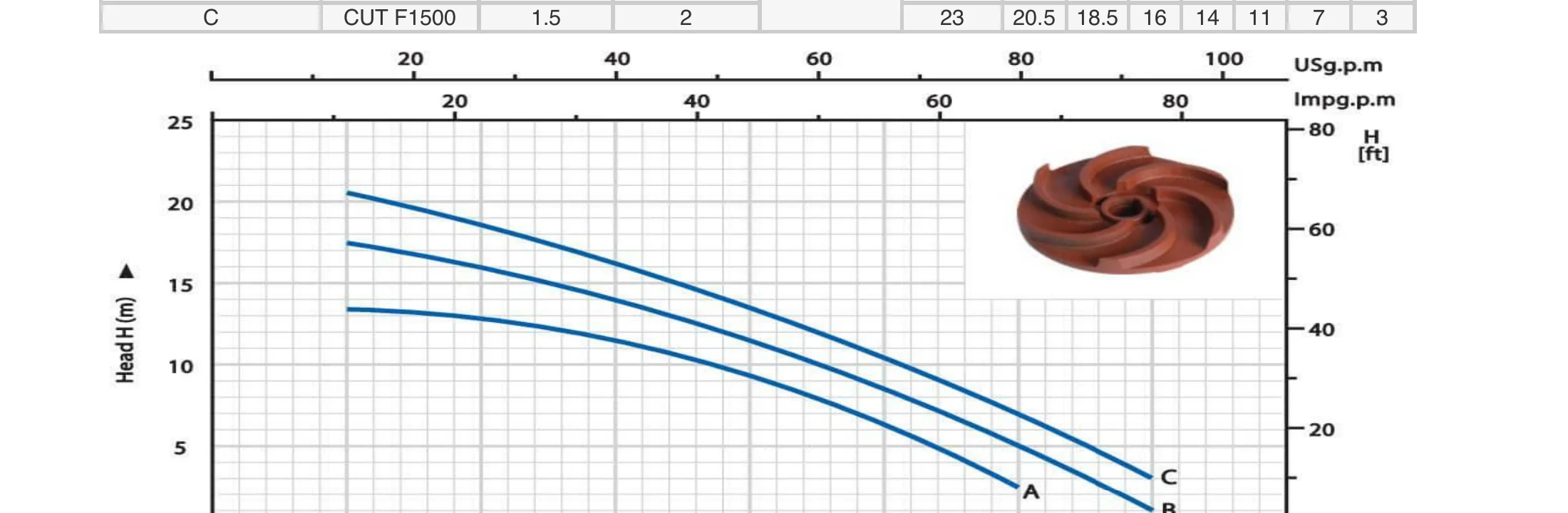

Performance Curves

Curves A–C correspond to CUT F800, CUT F1100 and CUT F1500 respectively.

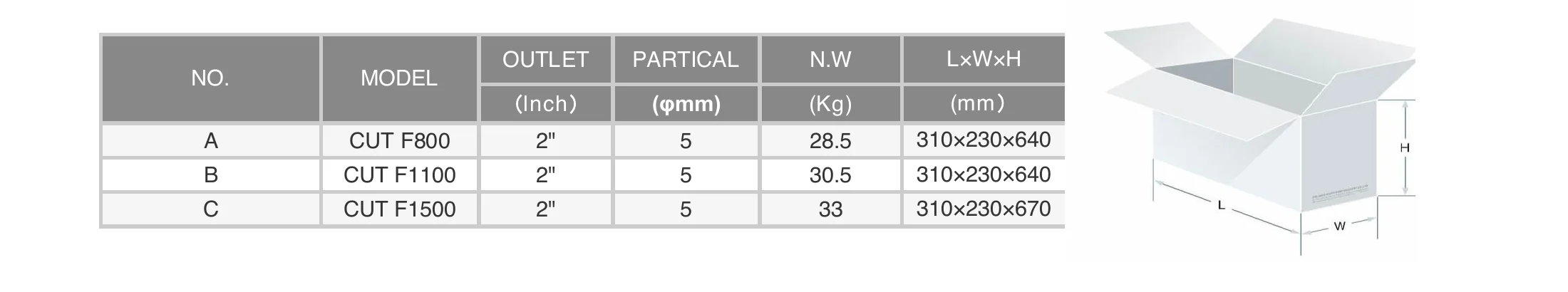

Dimensions & Packaging

Outlet size, max solid passage, weight and box dimensions for each model.

NO.NO.	MODELMODEL	OutletOUTLET (Inch)	Solid (φ)PARTICAL (φmm)	N.WN.W (Kg)	L×W×HL×W×H (mm)
A	CUT F800	2"	5	28.5	310×230×640
B	CUT F1100	2"	5	30.5	310×230×640
C	CUT F1500	2"	5	33	310×230×670
