Plastic Body Submersible Sewage Pumps
FQDP-AW Series
Description
FQDP-AW series lightweight technopolymer submersible pumps suitable for dirty water that is not chemically aggressive. Designed for clearing dirty water, discharging domestic waste water, and emptying collection traps containing suspended solids up to φ8mm. Single phase only, 0.4 kW to 0.75 kW.
Applications
Dirty WaterDomestic Waste WaterCollection Sumps
Construction Material
| Pump Body | Technopolymer |
| Suction Filter | Technopolymer |
| Impeller | Noryl |
| Motor Shaft | AISI304 SS |
| Mechanical Seal | Ceramic/Graphite |
| Cable | 6m power cable with plug |
Motor
- Two-pole induction motor (n=2850 r.p.m)
- Insulation Class F
- Protection IP68
- Continuous service S1
- Thermal protector
- Single-phase 220V / 50Hz, 60Hz if request
Operating Conditions
- Liquid temperature: up to 35°C
- Maximum ambient temperature: 40°C
Model Performance
Head values (H) in metres at each flow rate. All models available at our Karachi shop.
| NO. | MODEL | POWER | m³/hQ (m³/h) | 0 | 0.9 | 1.8 | 2.7 | 3.6 | 4.5 | 5.4 | 6.3 | 7.2 | 8.1 | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | l/minQ (l/min) | 0 | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 | 135 | ||
| A | FQDP-400AW | 0.4 | 0.55 | H | 7 | 6.5 | 6 | 5.5 | 5 | 4.5 | 3.8 | 3.2 | 2.5 | 1.5 |
| B | FQDP-550AW | 0.55 | 0.75 | 8 | 7.5 | 7 | 6.5 | 6 | 5.4 | 4.8 | 4 | 3.2 | 2.5 | |
| C | FQDP-750AW | 0.75 | 1 | 8.5 | 8 | 7.7 | 7.2 | 6.7 | 6.3 | 5.8 | 5.3 | 4.7 | 4 | |
H = Head in metres · Performance data at 50Hz

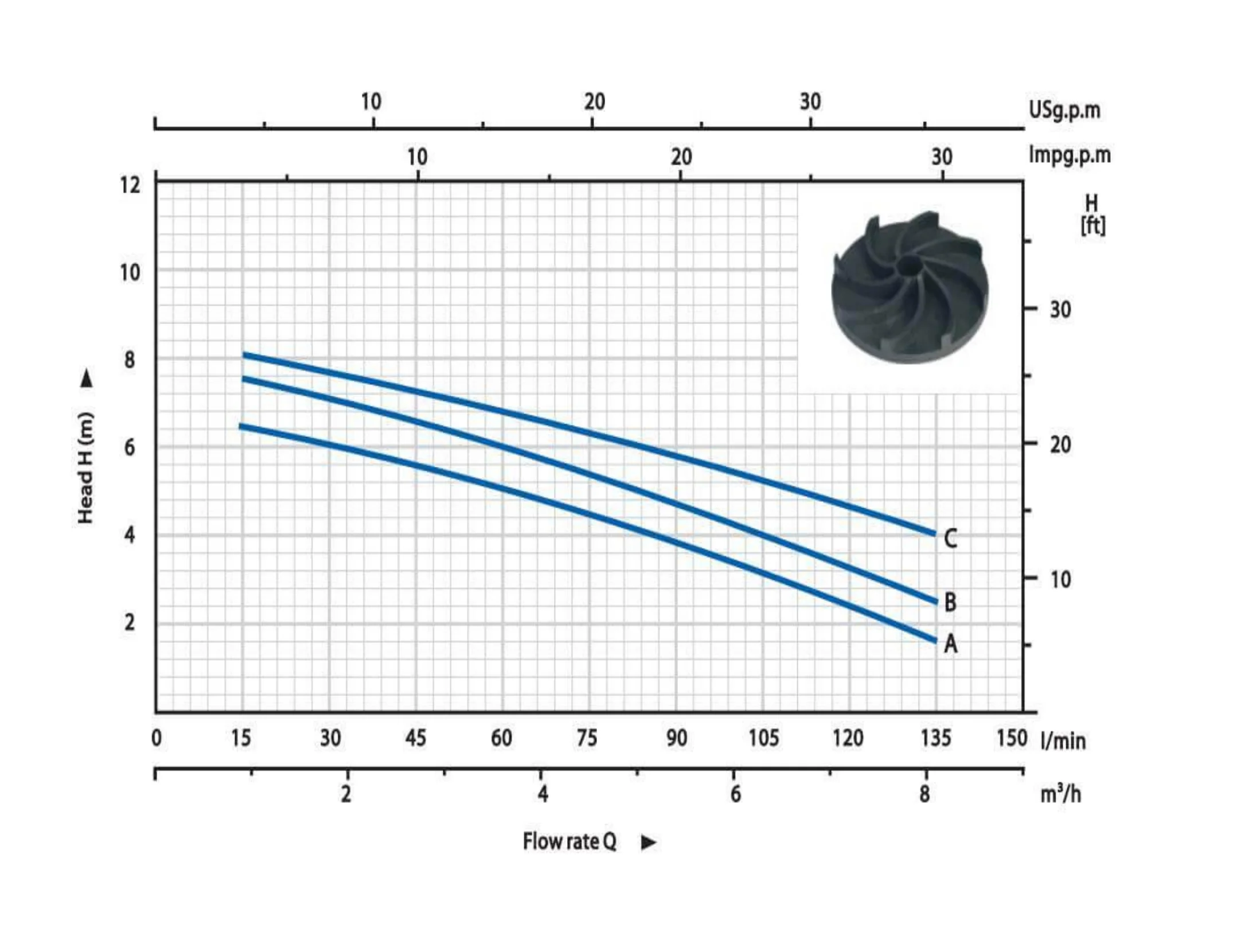

Performance Curves
Curves A–C correspond to FQDP-400AW, FQDP-550AW and FQDP-750AW respectively.

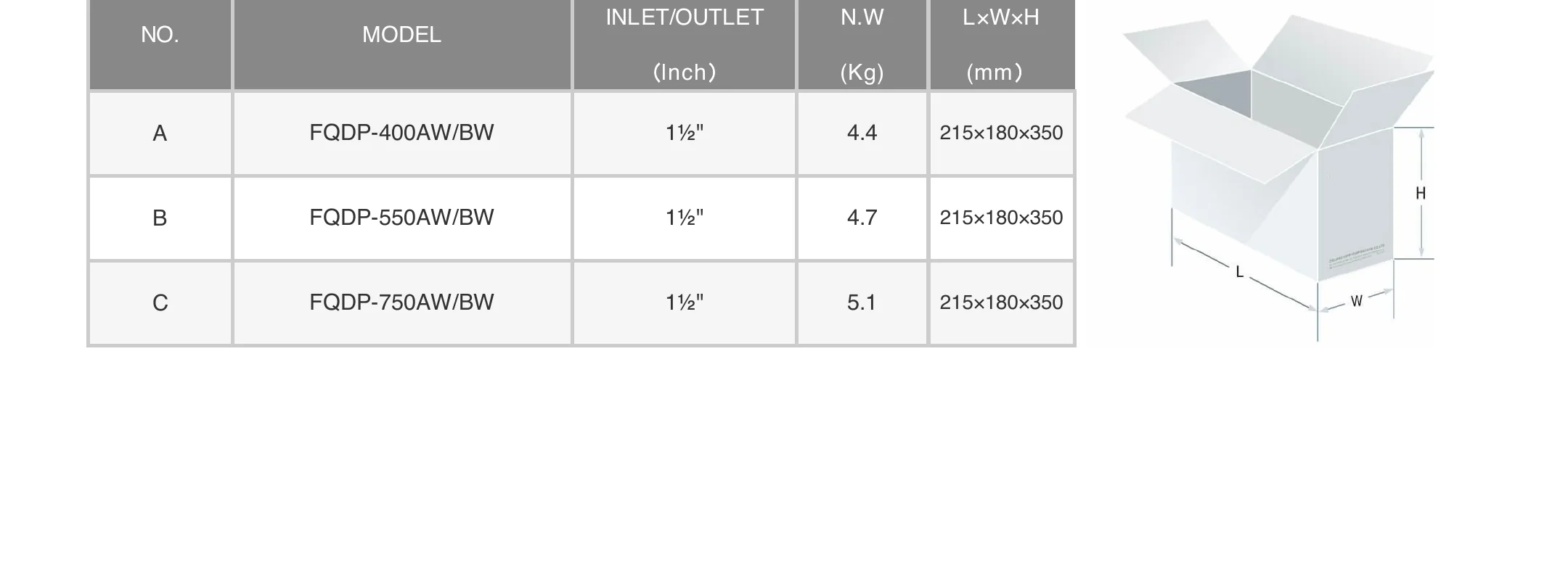

Dimensions & Packaging
Outlet size, max solid passage, weight and box dimensions for each model.
| NO.NO. | MODELMODEL | OutletOUTLET (Inch) | Solid (φ)PARTICAL (φmm) | N.WN.W (Kg) | L×W×HL×W×H (mm) |
|---|---|---|---|---|---|
| A | FQDP-400AW | 1½" | 8 | 4.4 | 215×180×350 |
| B | FQDP-550AW | 1½" | 8 | 4.7 | 215×180×350 |
| C | FQDP-750AW | 1½" | 8 | 5.1 | 215×180×350 |
