Imported Range
Submersible Sewage Water Pumps
FVTX-F Series
Description
FVTX-F series cast iron submersible pumps for domestic and industrial sewage discharge. Designed to handle dirty water and domestic waste water with solid particles up to ø35mm. Available from 0.55 kW to 2.2 kW, single and three phase.
Applications
Dirty WaterDomestic Waste WaterSewage DischargeCollection Sumps
Construction Material
| Pump Body | Cast Iron |
| Suction Filter | AISI304 SS |
| Impeller | AISI304 SS |
| Motor Shaft | AISI304 SS |
| Mechanical Seal | SIC-SIC / Ceramic-Graphite |
| Cable | 6m power cable with plug |
Motor
- Two-pole induction motor (n=2850 r.p.m)
- Insulation Class F
- Protection IP68
- Continuous service S1
- Thermal protector for single phase
- Single phase: 220V / 50Hz, 60Hz if request
- Three phase: 380V / 50Hz, 60Hz if request
Operating Conditions
- Liquid temperature: up to 35°C
- Maximum ambient temperature: 40°C
Model Performance
Head values (H) in metres at each flow rate. All models available at our Karachi shop.
| NO. | MODEL | POWER | m³/hQ (m³/h) | 0 | 6 | 12 | 18 | 24 | 30 | 36 | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| KW | HP | l/minQ (l/min) | 0 | 100 | 200 | 300 | 400 | 500 | 600 | ||
| A | FVTX-550F | 0.55 | 0.75 | H | 9.5 | 7.8 | 6.2 | 4 | 1 | ||
| B | FVTX-750F | 0.75 | 1 | 10.8 | 9 | 7.3 | 5 | 1.8 | |||
| C | FVTX-1100F | 1.1 | 1.5 | 13.5 | 11.5 | 10 | 8 | 6 | 3.5 | ||
| D | FVTX-1500F | 1.5 | 2 | 15 | 13.5 | 12 | 9.8 | 7.5 | 5.2 | 2.8 | |
| E | FVTX-2200F | 2.2 | 3 | 17 | 15 | 13.2 | 11.5 | 9 | 6.2 | 3 | |
H = Head in metres · Performance data at 50Hz

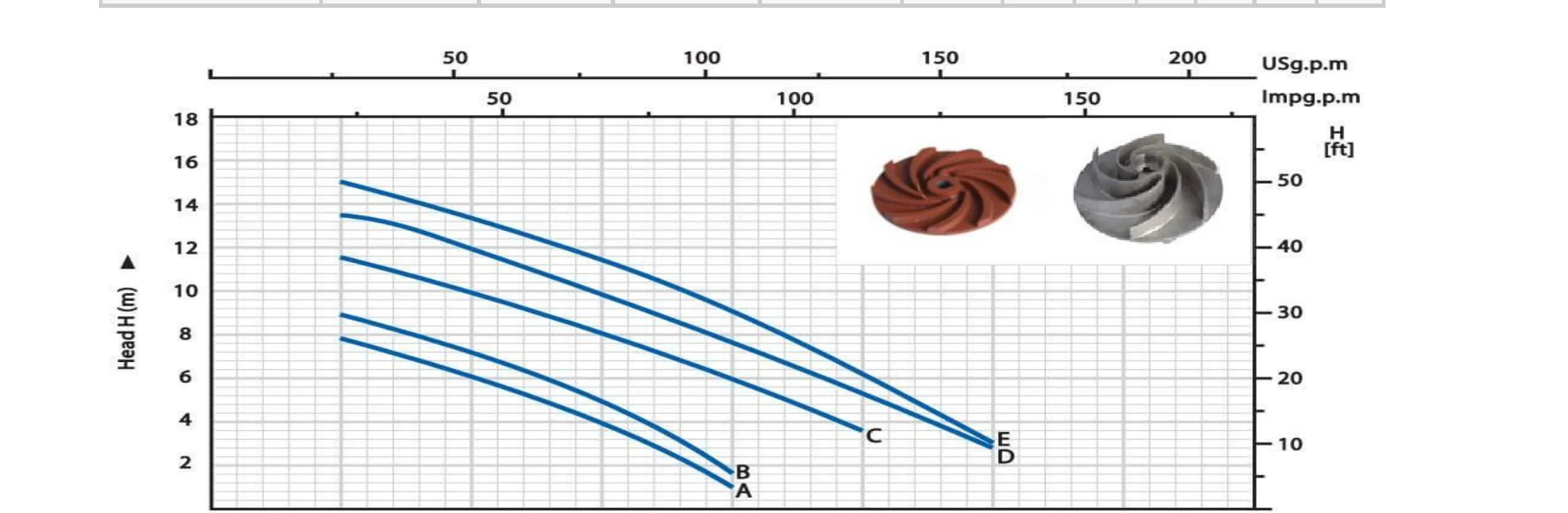

Performance Curves
Curves A–E correspond to FVTX-550F, FVTX-750F, FVTX-1100F, FVTX-1500F and FVTX-2200F respectively.

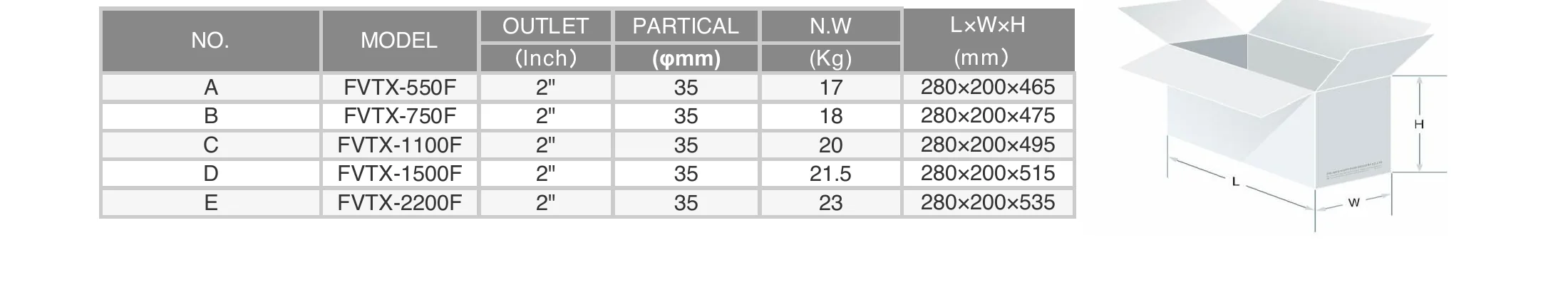

Dimensions & Packaging
Outlet size, max solid passage, weight and box dimensions for each model.
| NO.NO. | MODELMODEL | OutletOUTLET (Inch) | Solid (φ)PARTICAL (φmm) | N.WN.W (Kg) | L×W×HL×W×H (mm) |
|---|---|---|---|---|---|
| A | FVTX-550F | 2" | 35 | 17 | 280×200×465 |
| B | FVTX-750F | 2" | 35 | 18 | 280×200×475 |
| C | FVTX-1100F | 2" | 35 | 20 | 280×200×495 |
| D | FVTX-1500F | 2" | 35 | 21.5 | 280×200×515 |
| E | FVTX-2200F | 2" | 35 | 23 | 280×200×535 |
Ready to order the FVTX-F Sewage Series?
Available at our Karachi shop. WhatsApp us for pricing and availability.
