Pressure Boosting Sets (Pressure Pumps)

Automatic Pressure Boosting Pumps

Description

A ready-to-use and easy-to-install pressurization system designed to increase water pressure for residential, commercial, industrial, and agricultural applications. The system consists of a pump integrated with an advanced electronic control unit that automatically starts and stops based on water demand. It provides dry-run protection, integrated non-return valve, and operates without the need for an expansion tank. Available with an FSK or FPS controller across FPM, FCM, FCP, 2FCP and FCMIA pump variants.

Applications

Domestic Pressure BoostingIrrigationWater Treatment PlantsFirefightingAgriculture

Controller Types

FSK Set	Pressure-switch style with built-in gauge. Cut-in 1.2–2.2 bar. IP54.
FPS Set	Inline flow-sensor. Starts on demand, no pressure tank. IP65.

Operating Conditions

Liquid: clean, non-abrasive water
Liquid temperature: up to 60°C
Ambient temperature: up to 40°C
Total suction lift: up to 6m
No expansion tank required

Model Performance

Available with an FSK pressure-switch controller or an FPS inline flow-sensor controller.

FSK Sets

MODEL	kW	HP	Flow (l/min)Flow Max (Liters/min)	Pressure (Bar/Psi)Pressure Max (Bar/Psi)

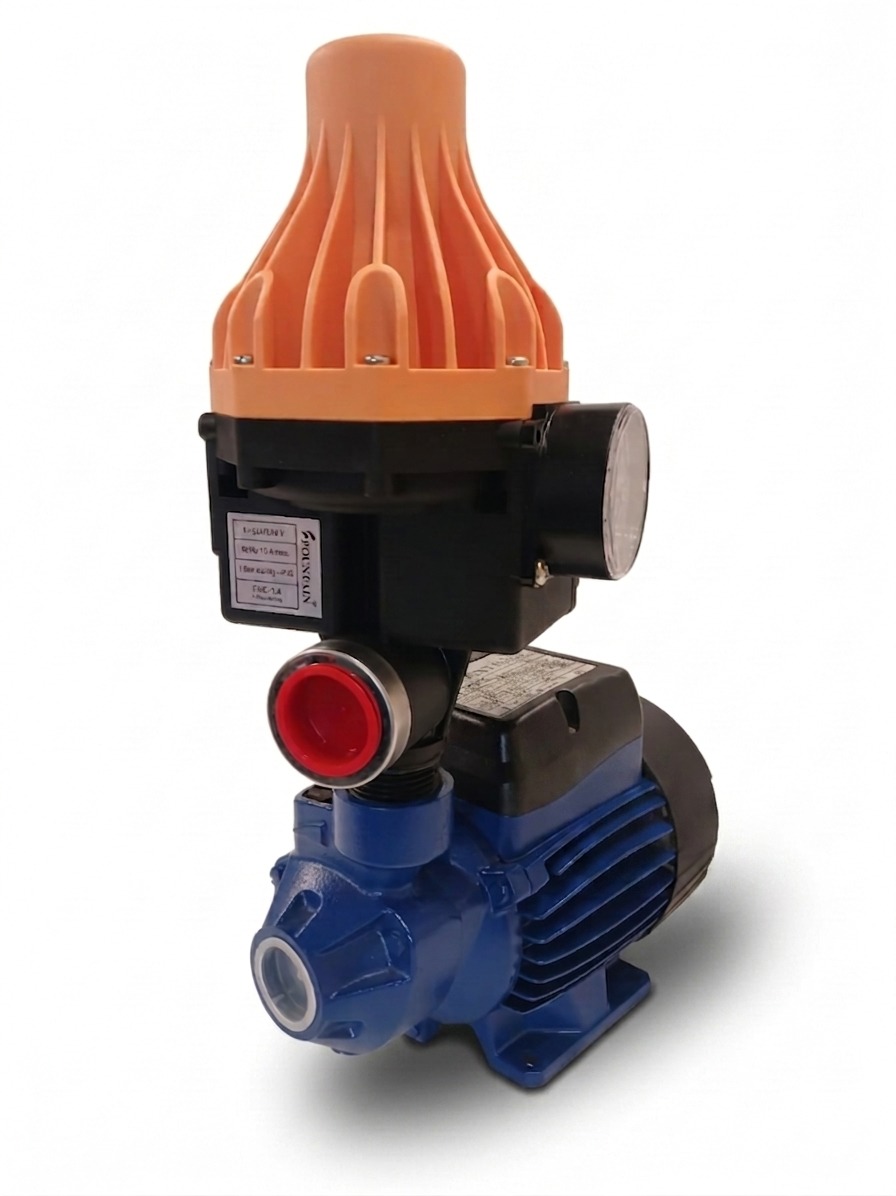

FPM 60 – FSK	0.37	0.5	35	3.4/49

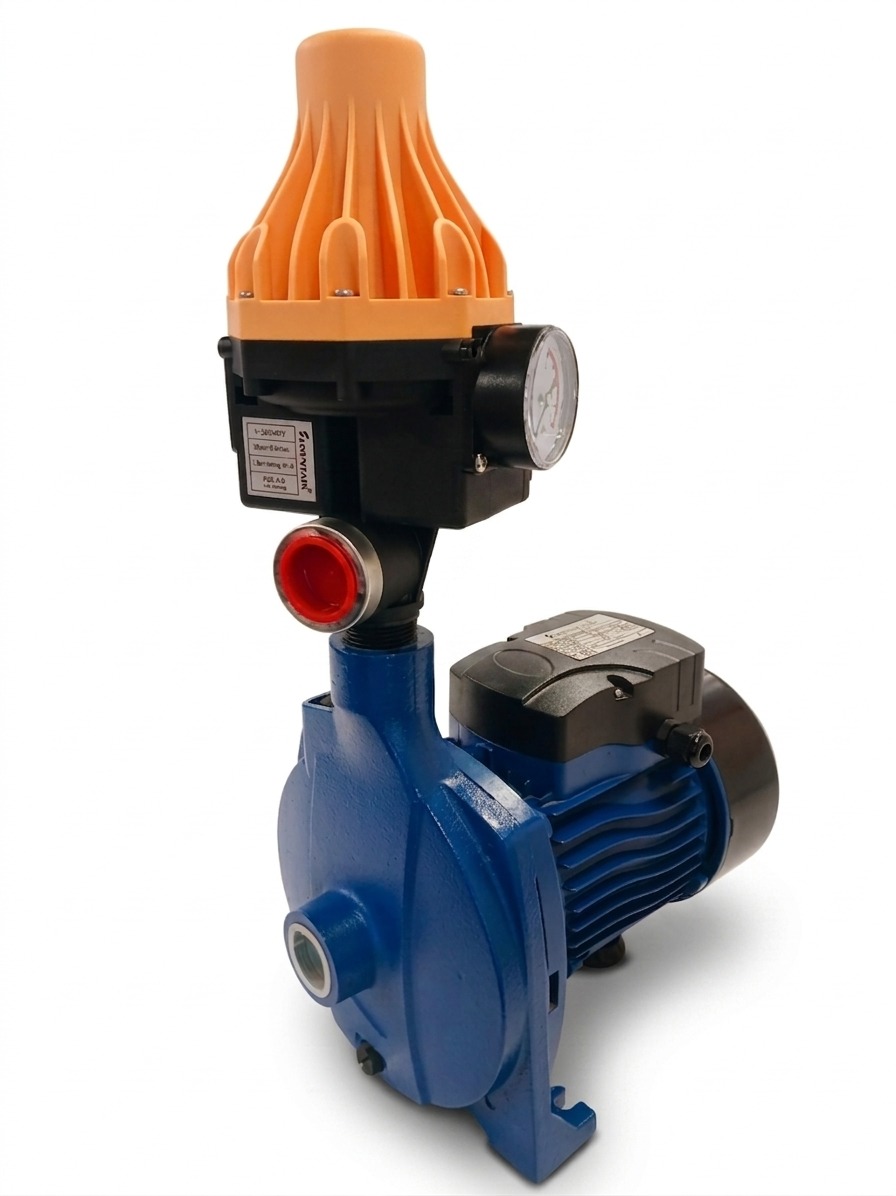

FCM – FSK	0.75	1	110	2.9/42

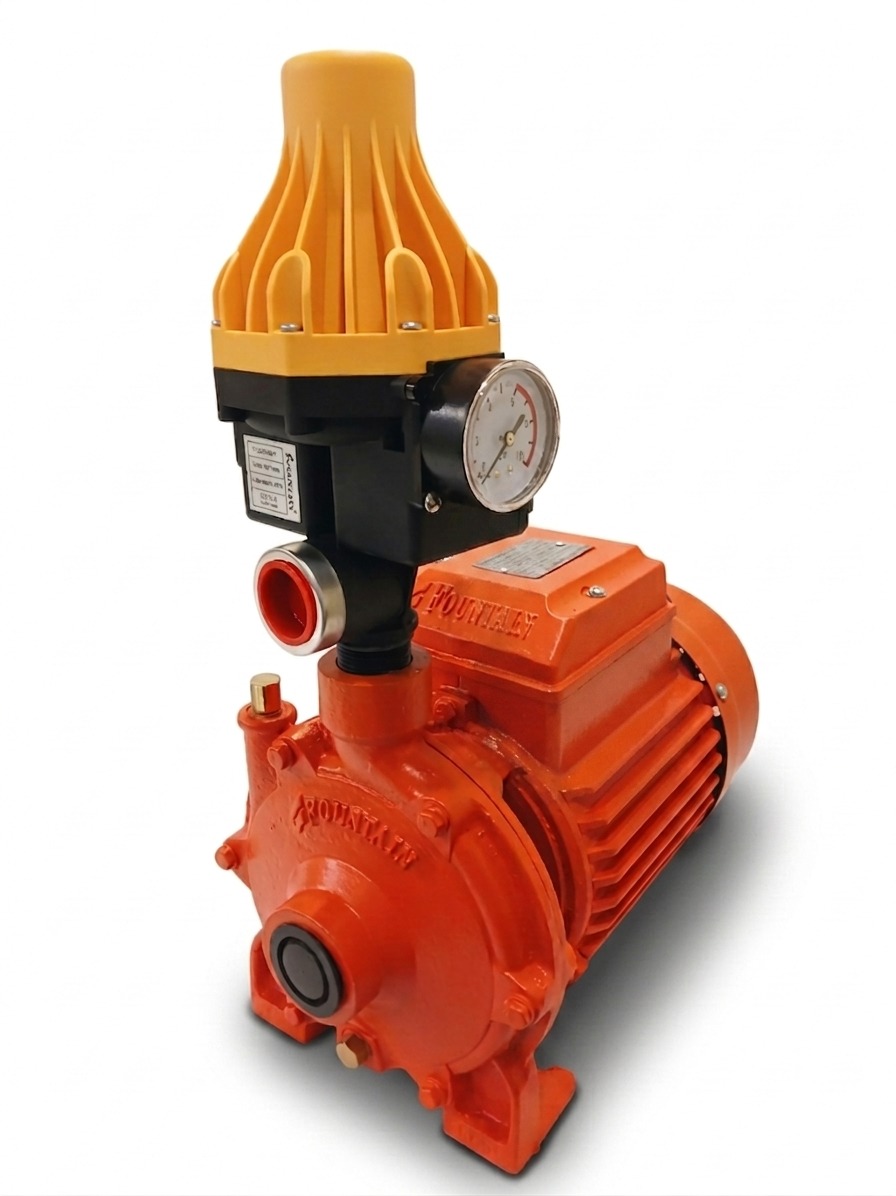

FCP 30 – FSK	0.75	1	146	2.5/36

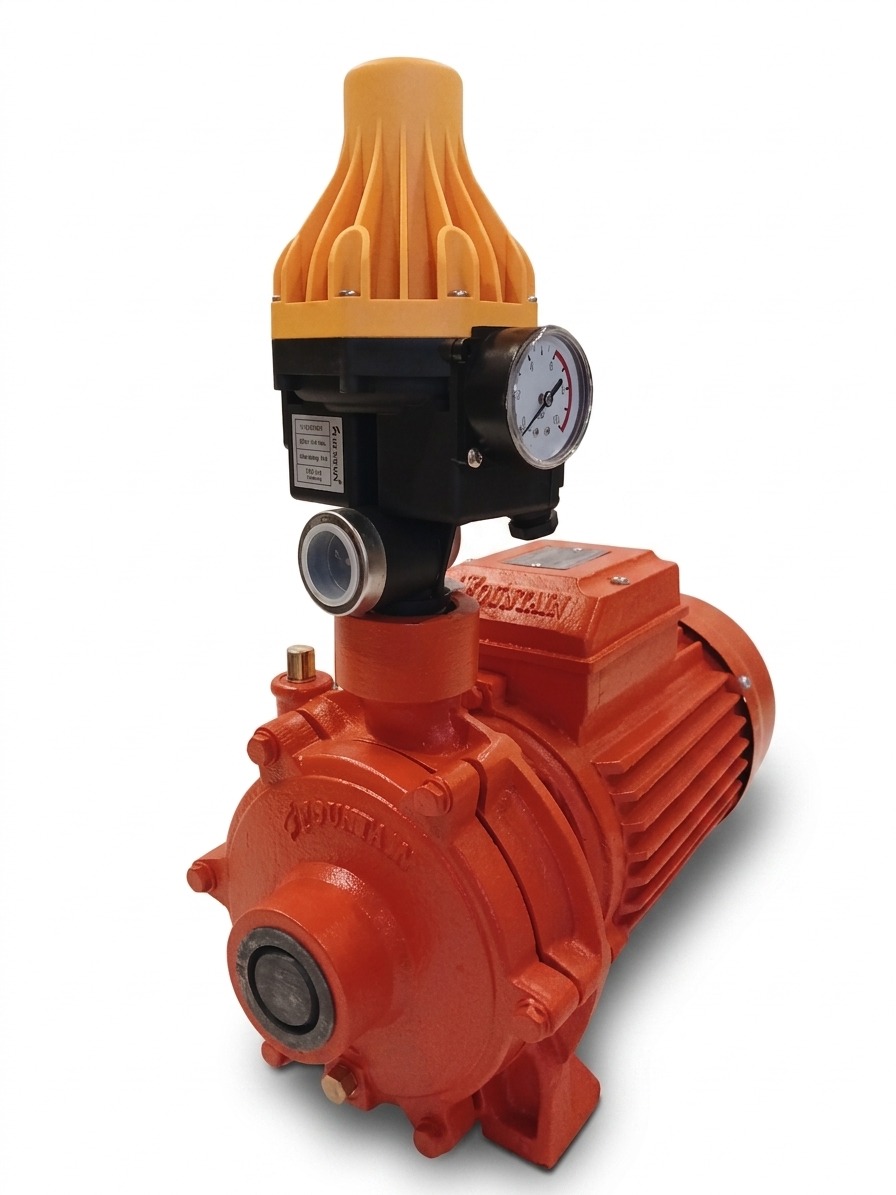

2FCP 35 – FSK	1.1	1.5	185	3.2/47
2FCP 63 – FSK	1.5	2	230	3.9/57

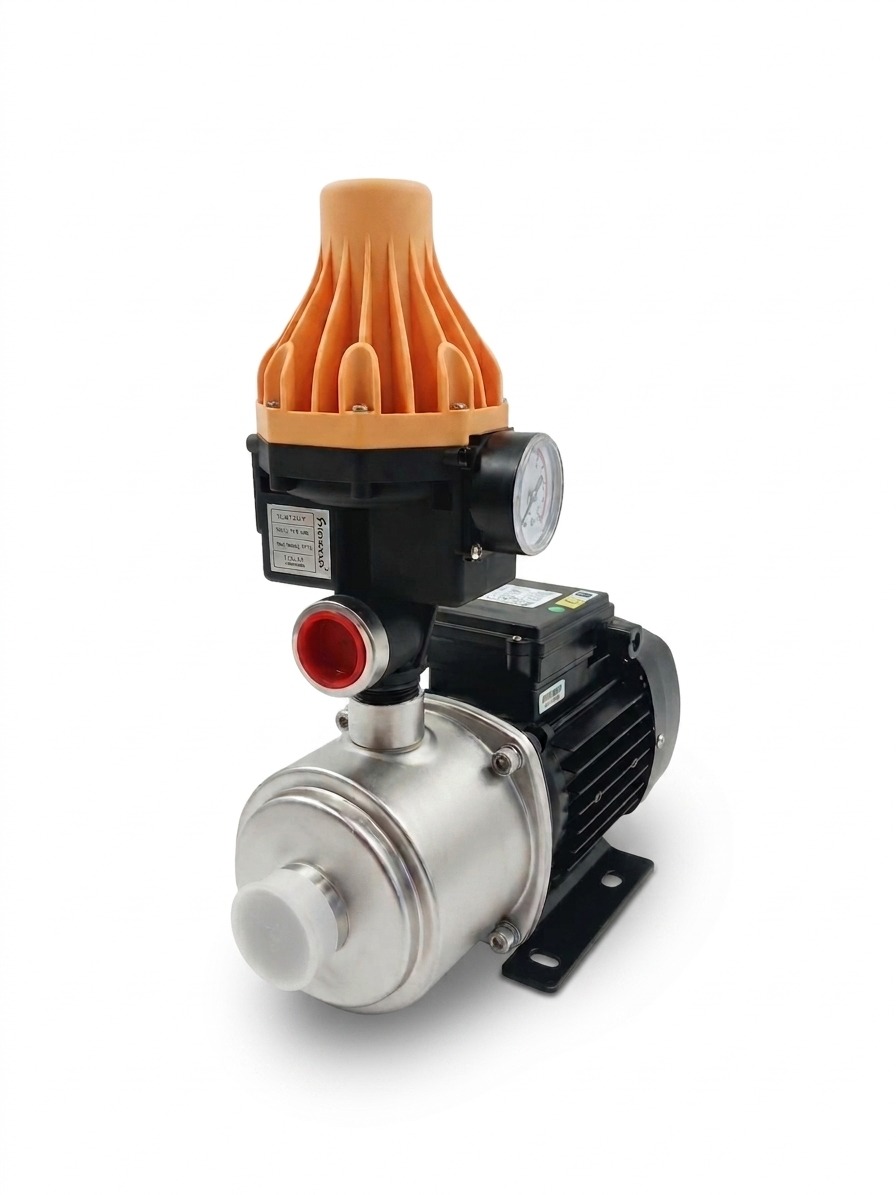

FCMIA 2-3 – FSK	0.37	0.5	75	2.8/41
FCMIA 4-4 – FSK	0.75	1	116	3.9/57
FCMIA 4-6 – FSK	1	1.4	116	6/86

FPS Sets

MODEL	kW	HP	Flow (l/min)Flow Max (Liters/min)	Pressure (Bar/Psi)Pressure Max (Bar/Psi)

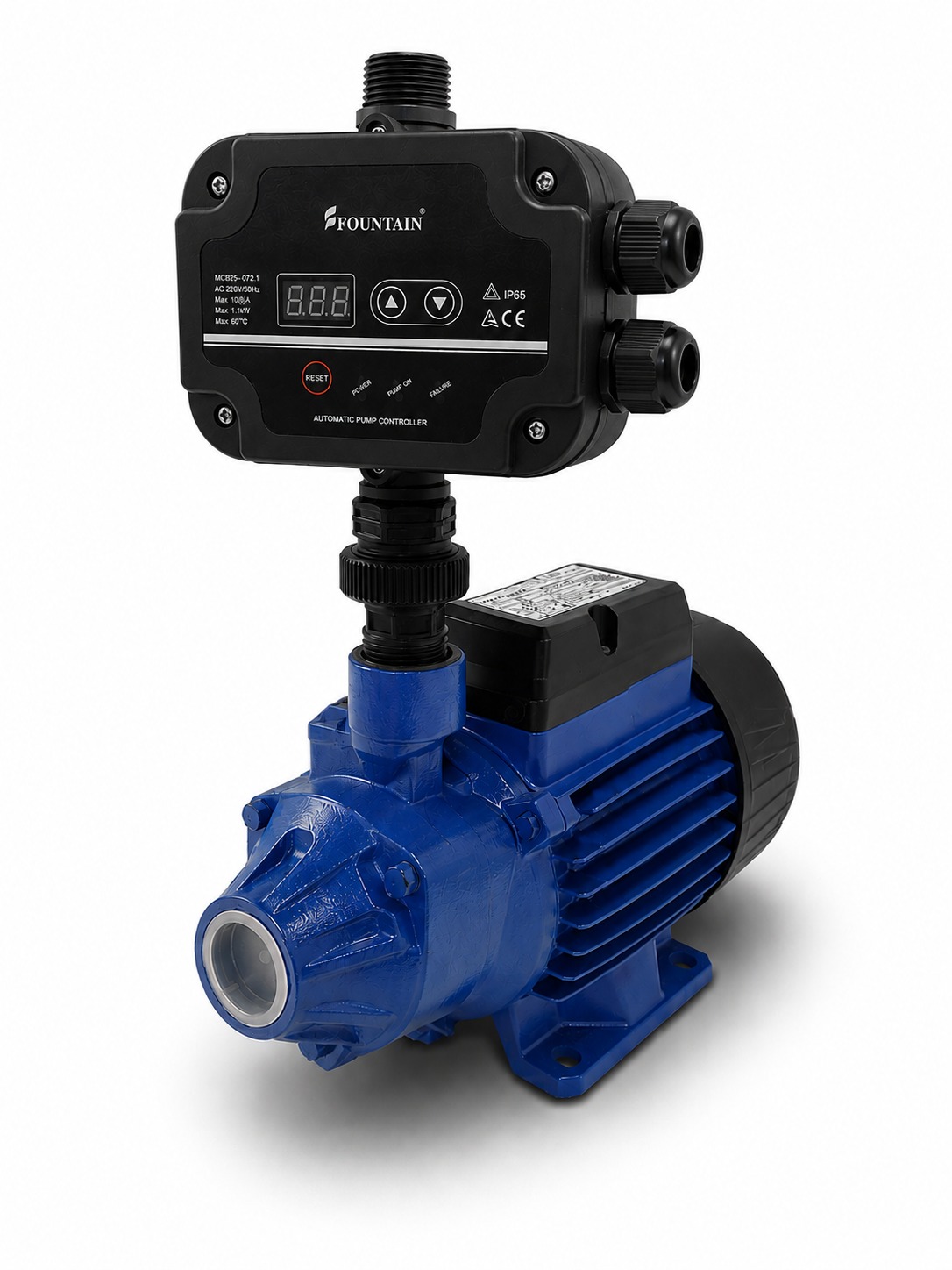

FPM 60 – FPS	0.37	0.5	35	3.4/49

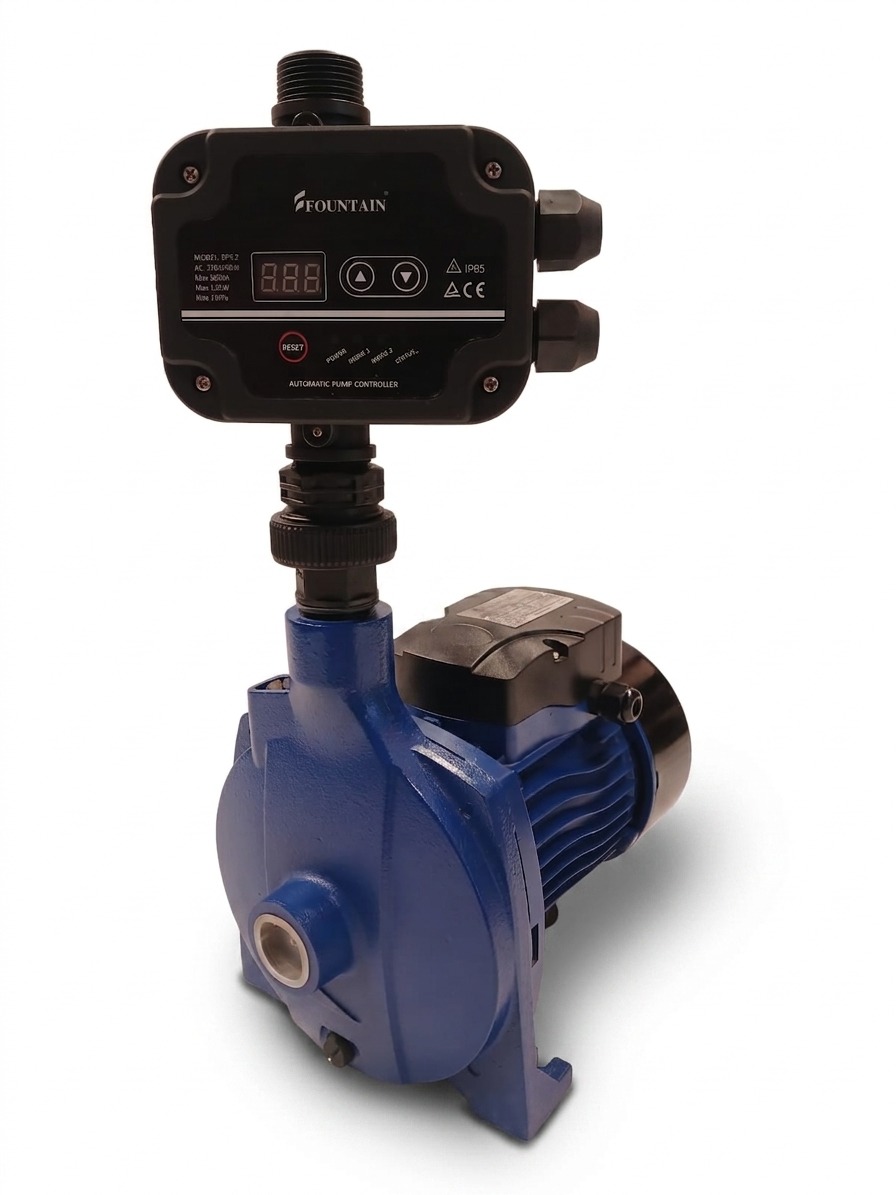

FCM – FPS	0.75	1	110	2.9/42

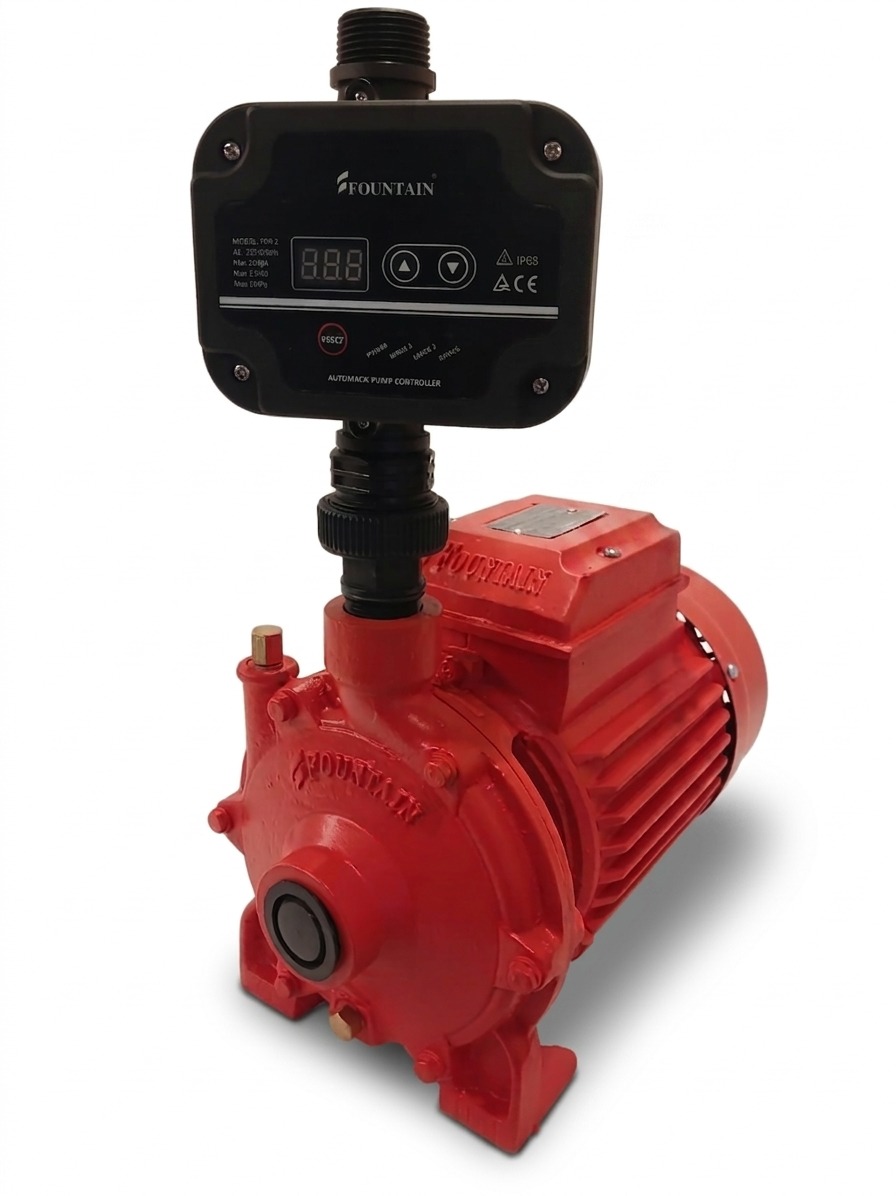

FCP 30 – FPS	0.75	1	146	2.5/36

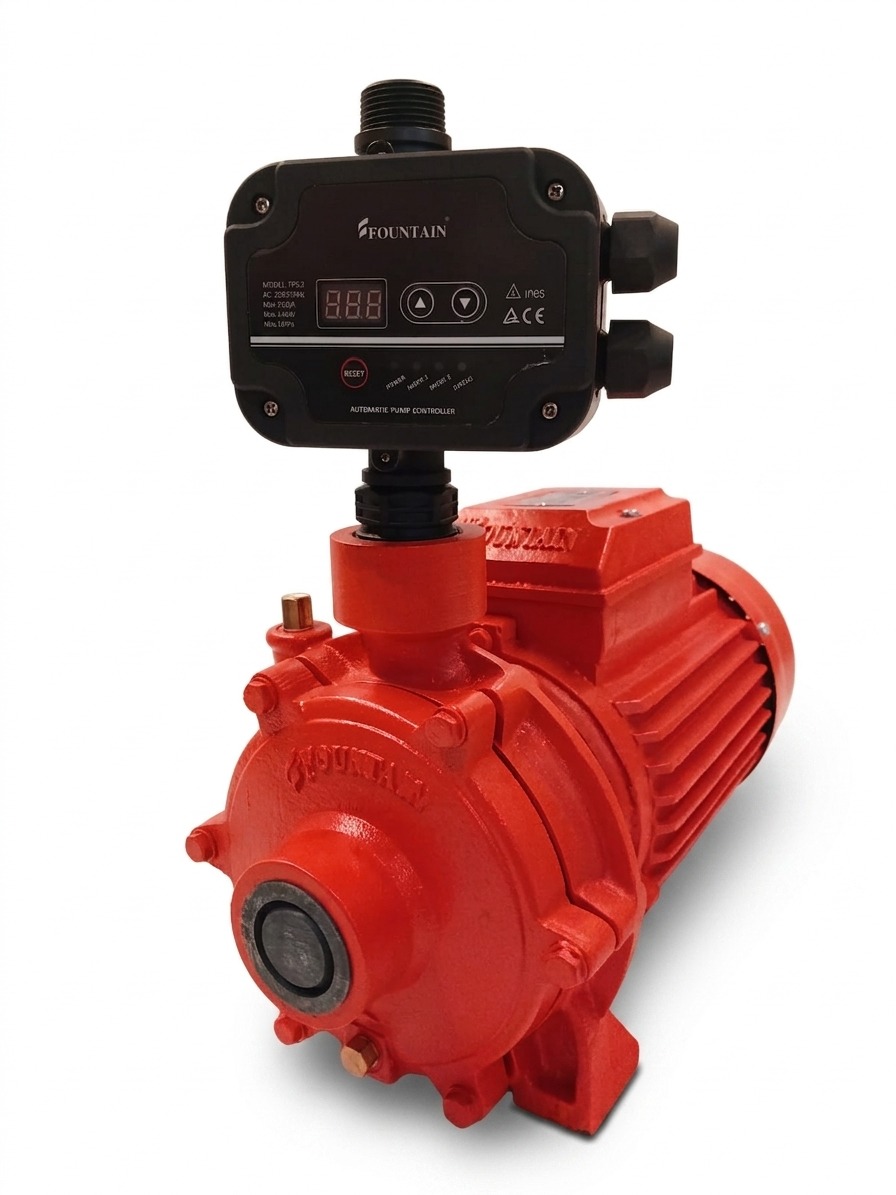

2FCP 35 – FPS	1.1	1.5	185	3.2/47
2FCP 63 – FPS	1.5	2	230	3.9/57

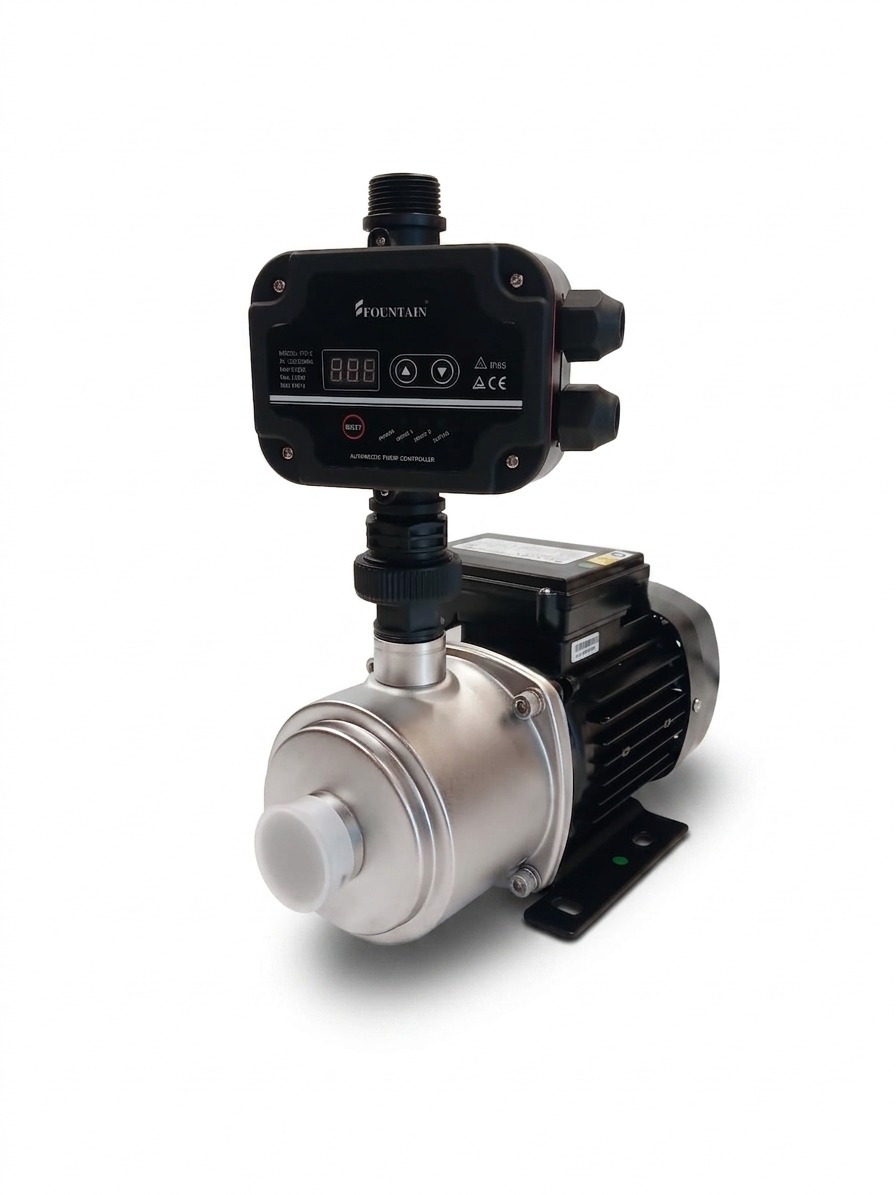

FCMIA 2-3 – FPS	0.37	0.5	75	2.8/41
FCMIA 4-4 – FPS	0.75	1	116	3.9/57
FCMIA 4-6 – FPS	1	1.4	116	6/86

Ready to order a Pressure Boosting Set?

Available at our Karachi shop. WhatsApp us for pricing and availability.
