Stainless Steel Single Impeller Centrifugal Pumps
Description
FDWK series fully stainless steel monobloc centrifugal pumps. SS 304 body for smaller models and SS 316L for larger — suitable for food processing, water treatment and applications where cast iron is not appropriate. Available from 0.25 kW to 3 kW, single and three phase.
Applications
Food & Beverage ProcessingWater TreatmentHVAC & CoolingPressure SystemsChemical HandlingIndustrial Use
Construction Material
| Pump Body | Stainless Steel 316L |
| Impeller | Stainless Steel 316L (open type) |
| Motor Shaft | Stainless Steel 316L |
| Motor Housing | Aluminium |
| Mechanical Seal | Ceramic / Graphite |
Motor
- Two-pole induction motor (2900 rpm)
- Insulation Class F
- Protection IP55
- Continuous service S1
- Thermal protector
- Single phase: 220V / 50Hz
- Three phase: 380V / 50Hz
Operating Conditions
- High temperature type: −70°C to +104°C
- Ambient temperature: ≤50°C
- Maximum working pressure: 0.3 MPa
- Liquid type: clean or mildly aggressive
Model Specifications
Rated values at best efficiency point. All models available at our Karachi shop.
FDWK (0.25 kW to 0.37 kW)
| MODEL | kW | HP | RATED HEAD (m) | RATED FLOW (m³/h) | INLET | OUTLET | NET WEIGHT | L × W × H |
|---|---|---|---|---|---|---|---|---|
| FDWK025(T) | 0.25 | 0.33 | 9 | 2.4 | G1¼" | G1" | 6.5 kg | 290×185×245 mm |
| FDWK037(T) | 0.37 | 0.5 | 9 | 3.6 | G1¼" | G1" | 7 kg | 290×185×245 mm |
| FDWK50(T) | 0.37 | 0.5 | 6.5 | 4.8 | G1¼" | G1" | 7.5 kg | 325×190×240 mm |
FDWK (0.55 kW to 3 kW)
| MODEL | kW | HP | RATED HEAD (m) | RATED FLOW (m³/h) | INLET | OUTLET | NET WEIGHT | L × W × H |
|---|---|---|---|---|---|---|---|---|
| FDWK100A(T) | 0.55 | 0.75 | 7 | 12 | G1½" | G1½" | 8 kg | 390×230×300 mm |
| FDWK100(T) | 0.75 | 1 | 7 | 12 | G1½" | G1½" | 9 kg | 390×230×300 mm |
| FDWK120A(T) | 0.75 | 1 | 10 | 12 | G1½" | G1½" | 9.2 kg | 390×230×300 mm |
| FDWK120(T) | 1.0 | 1.35 | 10 | 12 | G1½" | G1½" | 11 kg | 390×230×300 mm |
| FDWK200A(T) | 1.1 | 1.5 | 7.8 | 18 | G2" | G2" | 16 kg | 430×230×325 mm |
| FDWK200(T) | 1.5 | 2 | 10.5 | 18 | G2" | G2" | 17.4 kg | 430×230×325 mm |
| FDWK300(T) | 2.2 | 3 | 11 | 30 | G2½" | G2" | 22 kg | 475×250×325 mm |
| FDWK400(T) | 3.0 | 4 | 15 | 30 | G2½" | G2" | 23 kg | 490×250×325 mm |
(T) = Three Phase variant · Single phase: 220V / 50Hz · Three phase: 380V / 50Hz
Performance Curves
Head vs flow at 2900 r/min, 50Hz.

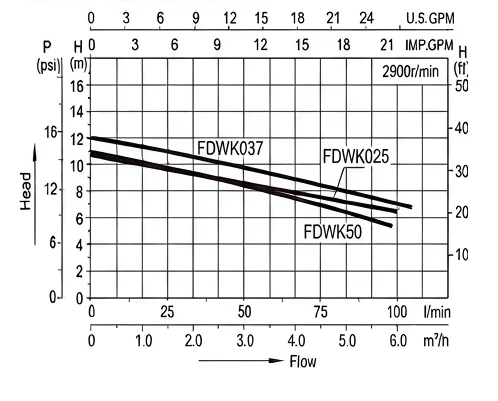

FDWK025 · FDWK037 · FDWK50
FDWK100A · FDWK120 · FDWK200 · FDWK300 · FDWK400
Dimensions
Overall dimensions and exploded view. All values in mm.

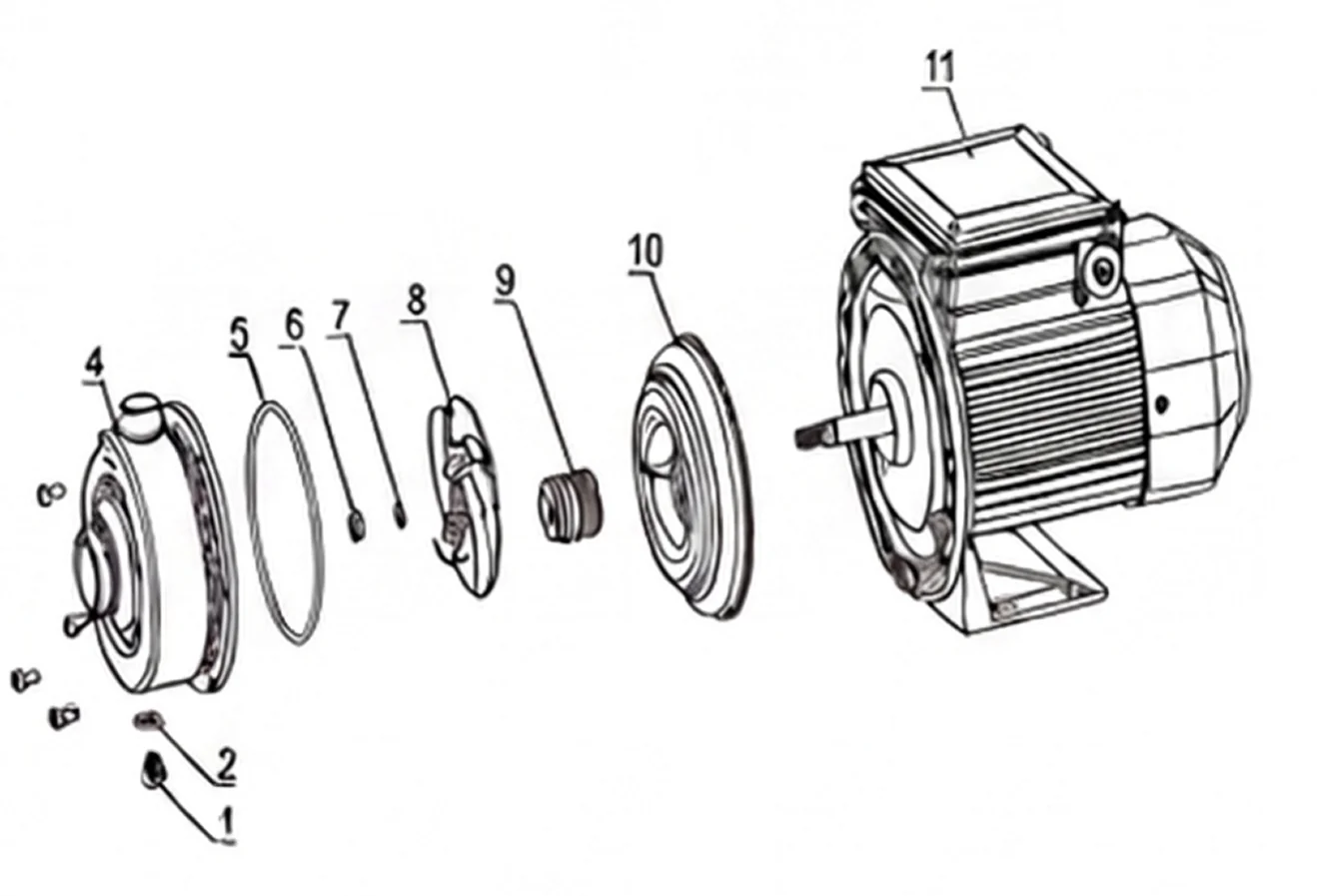

FDWK025 · FDWK037 · FDWK50 — Exploded View
| No. | Component |
|---|---|
| 1 | Plug |
| 2 | Washer |
| 3 | Hex Bolt |
| 4 | Pump Housing |
| 8 | Impeller |
| 9 | Mechanical Seal |
| 10 | Pump Cover |
| 11 | Motor |
FDWK100 · FDWK200 · FDWK300 · FDWK400 — Overall Dimensions
| MODEL | A | B | C | D | F | L | H | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|
| FDWK100A(T) | 120 | 172 | — | 159 | 75 | 335 | 216 | 234 | 110 |
| FDWK100(T) | 120 | 172 | — | 159 | 75 | 335 | 216 | 234 | 110 |
| FDWK120A(T) | 120 | 172 | — | 159 | 75 | 335 | 216 | 234 | 110 |
| FDWK120(T) | 120 | 172 | — | 159 | 75 | 335 | 216 | 234 | 110 |
| FDWK200A(T) | 198 | 193 | 185 | 165 | 82 | 378 | 243 | 258 | 125 |
| FDWK200(T) | 198 | 193 | 185 | 165 | 82 | 378 | 243 | 258 | 125 |
| FDWK300(T) | 198 | 193 | 185 | 163 | 82 | 413 | 242 | 255 | 125 |
| FDWK400(T) | 108 | 193 | 183 | 163 | 82 | 430 | 242 | 258 | 125 |
