Hot Water Circulation Pump
FLRP Series
Description
Compact brass-body inline circulation pump designed for domestic and commercial hot-water heating systems. Rated to 110 °C, the FLRP 25-6-180 keeps water moving efficiently through boiler loops, underfloor circuits and solar thermal installations with minimal power consumption. Compatible with the optional WPR-90GA housing thermostat for automatic temperature control.
Applications
Construction Material
| Pump Body | Brass |
| Shaft | Ceramic |
| Impeller | Polyethersulfone (plastic) |
Electrical
- Single phase: 220V / 50Hz
- Power: 100W
- Insulation Class F
- Protection IP44
- Continuous service S1
Operating Conditions
- Liquid temperature: up to 110°C
- Suitable for heating and cooling circuits
- Liquid type: clean water (heating/HVAC systems)
- Compact inline design for tight spaces
Model Specifications
Available at our Karachi shop. WhatsApp us for pricing.
| MODEL | MAX HEAD (m) | MAX FLOW | POWER | PROTECTION | INSULATION | MAX TEMP |
|---|---|---|---|---|---|---|
| FLRP 25-6-180 | 6 | 60 L/min | 100 W | IP44 | F | 110°C |

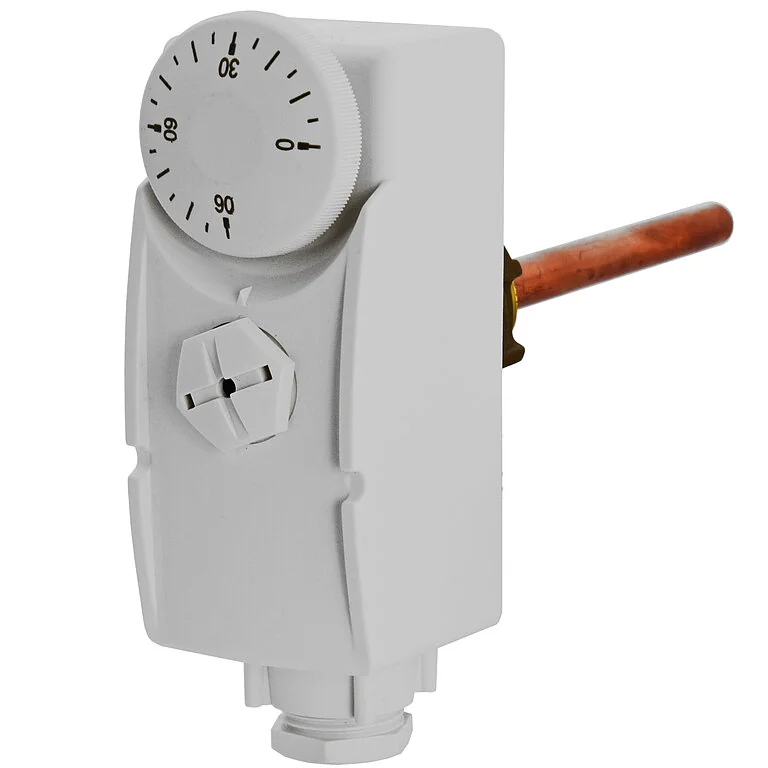

WPR-90GA Housing Thermostat
Submersible housing thermostat compatible with the FLRP 25-6-180. Controls pump activation for both heating and cooling applications across a wide temperature range of 0 °C to +90 °C — ideal for automating boiler and solar thermal circuits.
| Model | WPR-90GA |
| Type | Housing Thermostat |
| Assembly | Submersible |
| Range | 0 °C … +90 °C |
| Function | Heating / Cooling |
